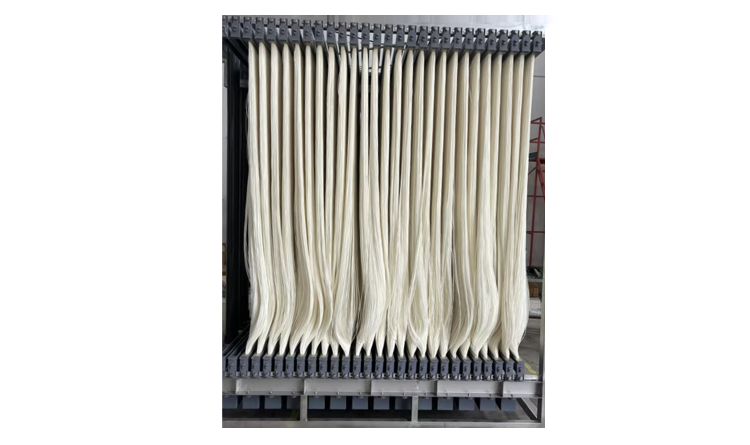

ARISE™ HF – Hollow Fiber MBR Membranes
Reinforced PVDF hollow fiber membranes with an out-to-in flow configuration, designed for submerged installation with high mechanical durability and excellent fouling resistance.
Membrane Bioreactor (MBR)
Overview

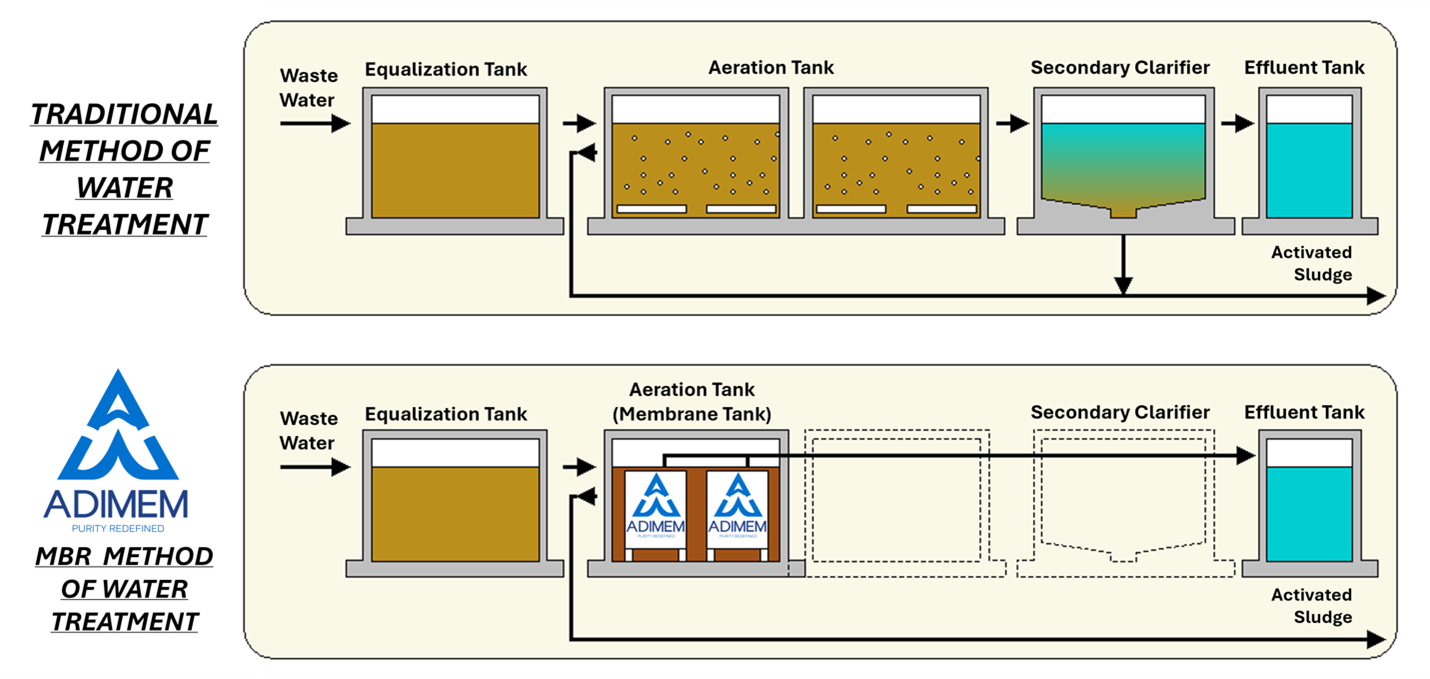

Membrane Bioreactor (MBR) combine biological treatment with membrane filtration, delivering high-quality treated water in a compact footprint. ARISE MBR membranes from Adimem Technologies integrate high-flux, chemically robust membranes into submerged bioreactor systems — ideal for municipal STPs, industrial ETPs, and decentralized reuse applications.
ARISE MBR membranes from Adimem Technologies integrate high-flux, chemically robust membranes into submerged bioreactor systems — ideal for municipal STPs, industrial ETPs, and decentralized reuse applications.
Key Features
- Reinforced cage for mechanical strength and ease of handling
- High flux (15–35 LMH) with excellent fouling resistance
- Compatible with standard aeration and backflush systems
- Long operational life and easy maintenance
-

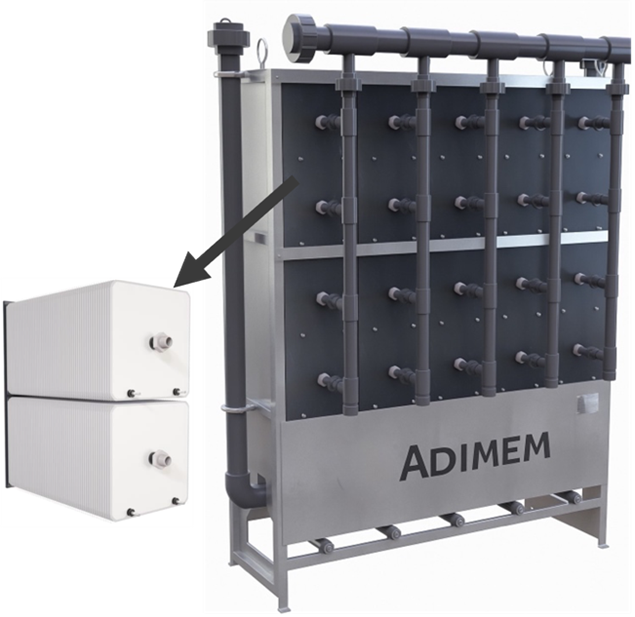

ARISE™ FS – Flat Sheet MBR Membranes
Flat sheet membranes engineered for submerged operation, providing robust solids-liquid separation with consistent performance under varying loading conditions.
-
| Model | Pore Size | Configuration | Applications | Datasheet |
|---|---|---|---|---|
| AMT-ARISE™-MBR-HF010 | 0.1 µm | Reinforced HF Module | Municipal STPs, industrial ETPs | Get Pdf |
| AMT-ARISE™-MBR-HF030 | 0.03 µm | Reinforced HF Module | Tertiary filtration, greywater reuse | Get Pdf |
| AMT-ARISE™-MBR-FS010 | 0.1 µm | Submerged Flat Sheet | Institutional STPs, hotels, housing units | Get Pdf |
| AMT-ARISE™-MBR-FS030 | 0.03 µm | Submerged Flat Sheet | Color removal, industrial reuse | Get Pdf |
Key Features
- Modular design for easy scalability and maintenance
- High-quality effluent even with load variability
- Lower aeration energy vs. hollow fiber options
- Ideal for compact and decentralized systems
-

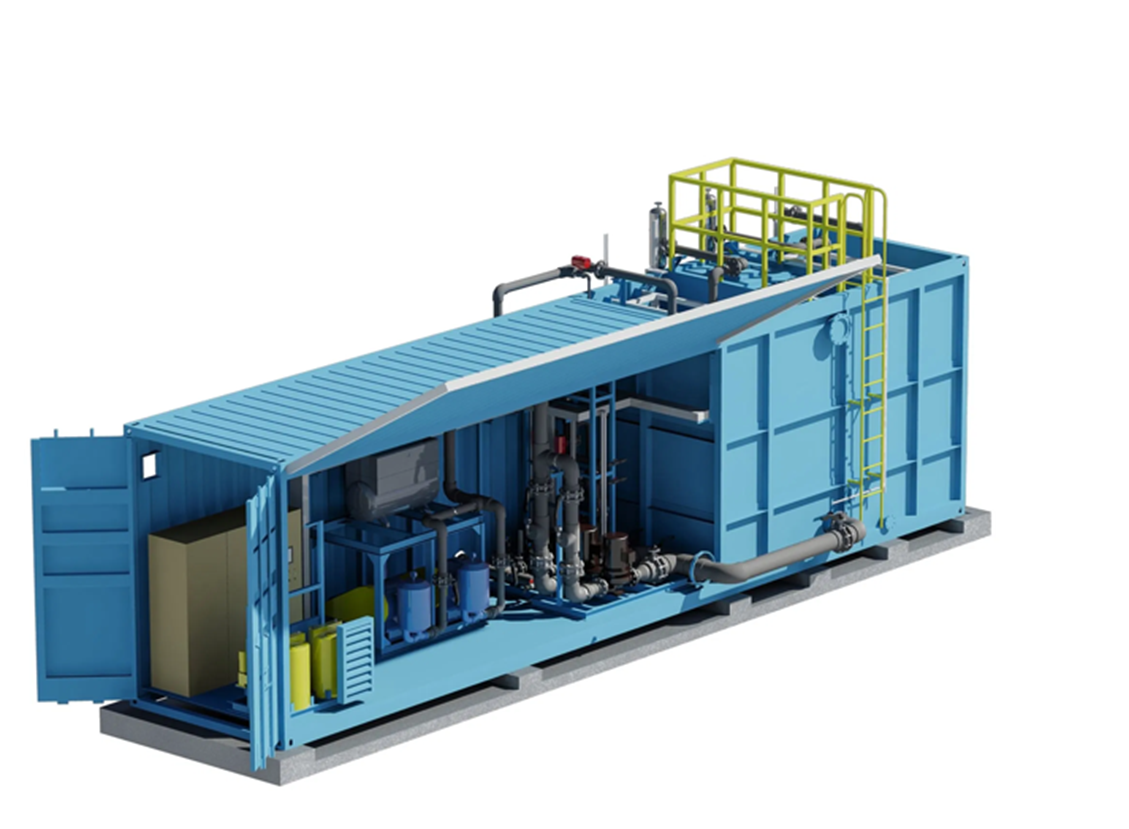

Adimem’s AriseBox™
Adimem also offers fully integrated containerized MBR systems — combining our ARISE membranes with biological treatment, disinfection, and control systems in a pre-assembled, factory-tested container unit.
Ideal For
- Residential complexes, industrial units, and labor camps
- Quick deployment or space-limited installations
- Temporary/portable wastewater treatment setups
System Highlights
- Capacities from 10 KLD to 200 KLD
- Includes screening, aeration, membrane tank, blower, pumps, and PLC/HMI
- Available in 20-ft or 40-ft container footprints
- Optional remote monitoring and treated water reuse package (for flushing/gardening)
- Minimal civil work required — just plug, connect, and start
Key Benefits of ARISE MBR Technology
- Exceptional treated water quality (BOD <5 ppm, turbidity <1 NTU)
- Compact footprint and lower sludge generation
- Available in multiple pore sizes to suit different wastewater profiles
- Easy to integrate in both new projects and retrofit upgrades
- Backed by design support, pilot testing, and lifecycle service
FAQ's
What are the key applications of MBR systems?
MBR systems are widely used in municipal sewage treatment plants (STPs), industrial effluent treatment plants (ETPs), and decentralized wastewater treatment systems. They are ideal for residential complexes, hotels, commercial buildings, and industrial units where space is limited and high-quality treated water is required. MBR technology is also used for greywater reuse, irrigation, flushing, and industrial recycling applications.
What are the differences between hollow fiber and flat sheet MBR membranes?
MBR membranes are available in hollow fiber (HF) and flat sheet (FS) configurations. Hollow fiber membranes offer high surface area, compact design, and high flux, making them suitable for large-scale municipal and industrial systems. Flat sheet membranes provide greater mechanical strength, stable performance under variable loads, and easier maintenance, making them ideal for decentralized and modular systems. The choice depends on application type, load variation, and maintenance preferences.
Why choose a reliable MBR membrane manufacturer or supplier in India?
Choosing a trusted MBR membrane manufacturer or supplier in India ensures access to high-performance, durable, and efficient wastewater treatment solutions. Reliable manufacturers offer advanced membrane technologies (HF and FS), integrated systems like containerized MBR units, and customizable capacities. They also provide technical support, system design, pilot testing, and lifecycle services, ensuring optimal performance and long-term reliability. Partnering with an experienced supplier helps reduce operational costs, improve water reuse efficiency, and meet environmental compliance standards.
